Persistence setup on MS Azure

Visit the Azure portal.
Sign in with your Azure account credentials.

Navigate to `Create a resource`

Click on the + Create a resource button on the left-hand side.

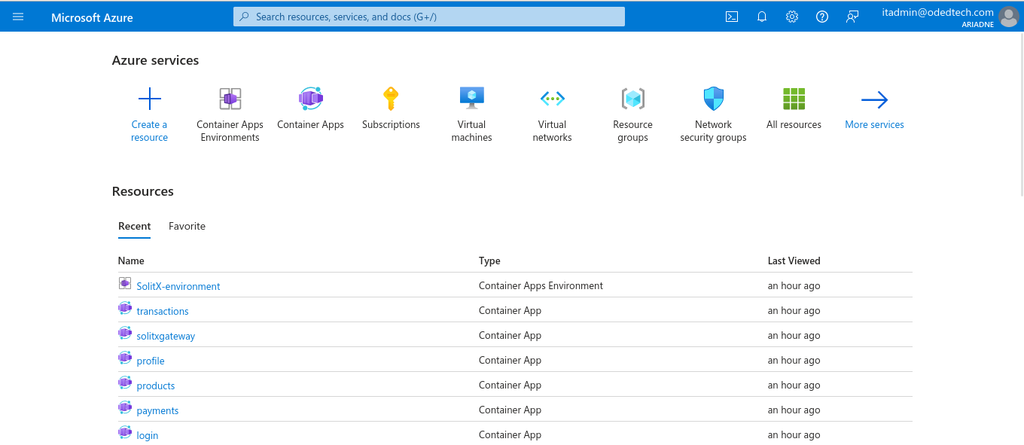

Create a resource

1. Search for `Azure Database for PostgreSQL`

In Search the Marketplace box, type Azure Database for PostgreSQL.
Select Azure Database for PostgreSQL from the search results.

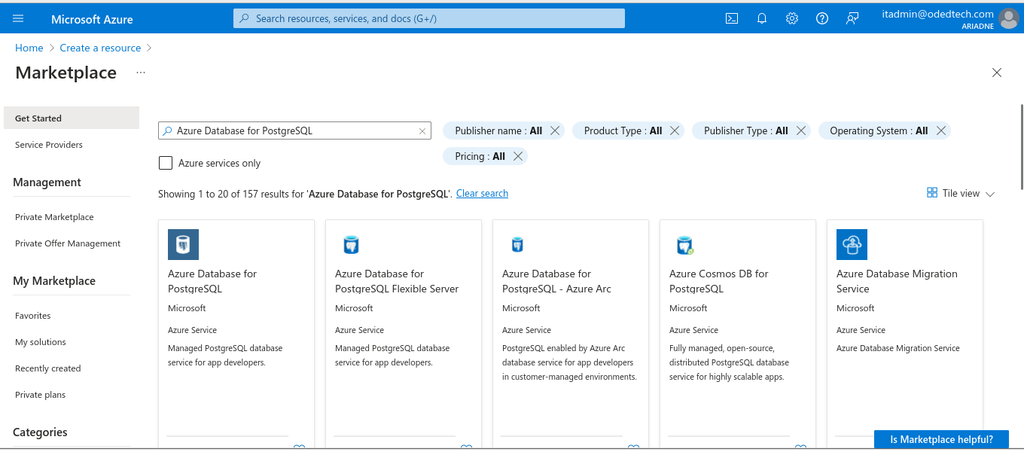

Marketplace

Click on the Azure Database for PostgreSQL → Create.

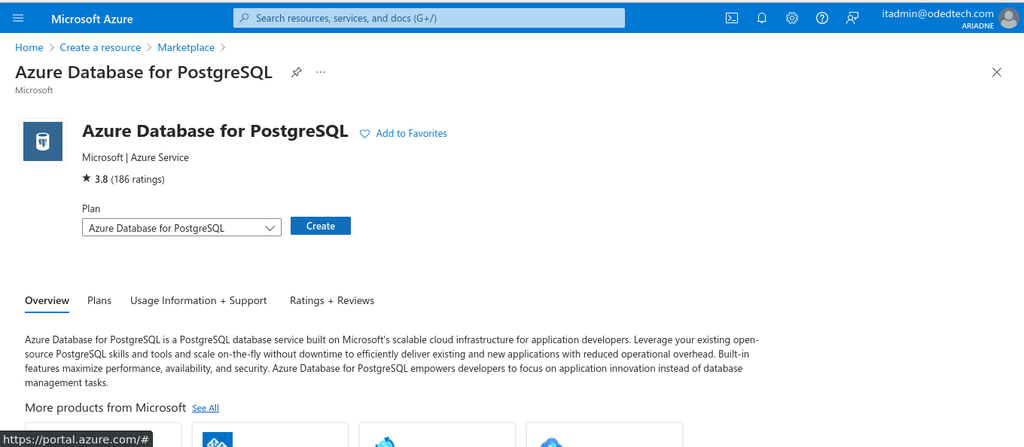

Azure database for postgreSQL

Basics

Configure basic details of the project.

1. Project details

Select the default resource group or create a new resource group.
In the Subscription field, select the Microsoft Azure Subscription (Default).
In the Resource group field, create a new resource group or select an existing one from your subscription.
For creating new, Click on Create New → Enter the name → Click OK.

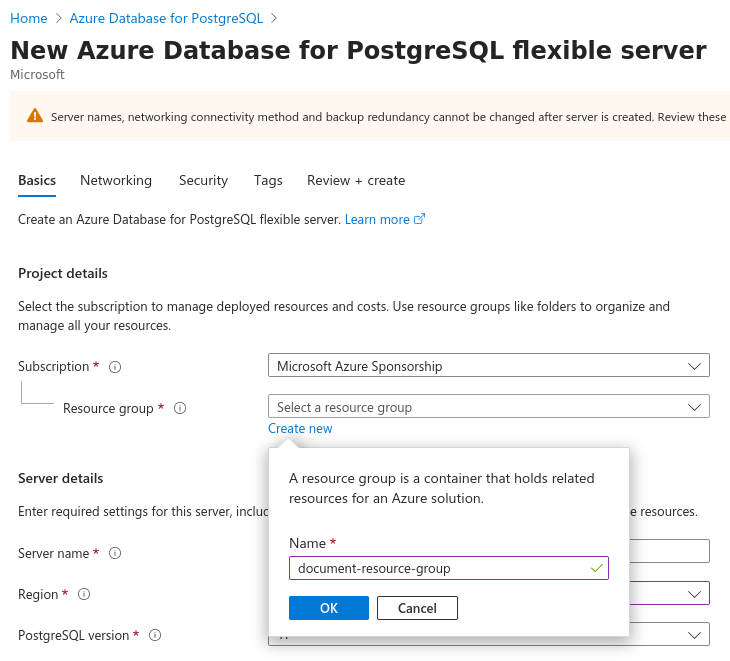

Project details configuration

2. Server details

Provide a unique name for your PostgreSQL server (eg: SolitX PgSQL server).
Choose the appropriate region for your PostgreSQL server (eg: Central US).
Select PostgreSQL version 16.
Select the workload type as Production.

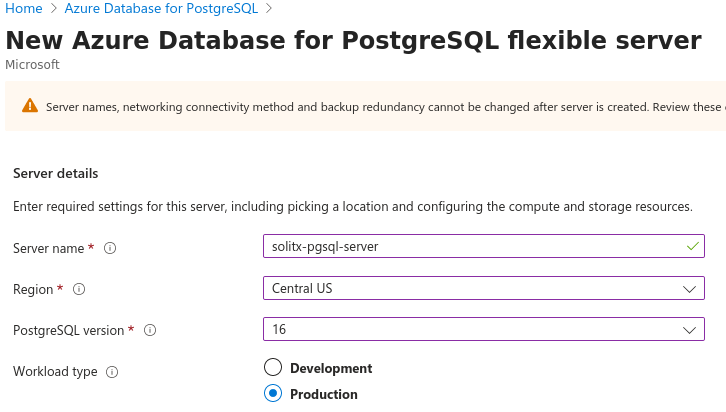

Server configuration

2.1. Compute server settings

In the Server details, in the Compute + storage section, click on Configure server.
Select Cluster as Server.
Select the Compute tier as General Purpose (2-96 vCores) - Balanced configuration for most common workloads.
Compute size is Standard_D4ds_v5 (4 vCores, 16 GiB memory, 6400 max iops).
In the Storage, select the Storage type as Premium SSD.
Storage size is 128GiB.
Performance tier is P10 (500 iops)
In High availability, select Same zone - a standby server is available within the same zone (99.95% SLA). Provides lower transactional latency than zone-redundant.
Let the Backups be the default settings.
Click Save.

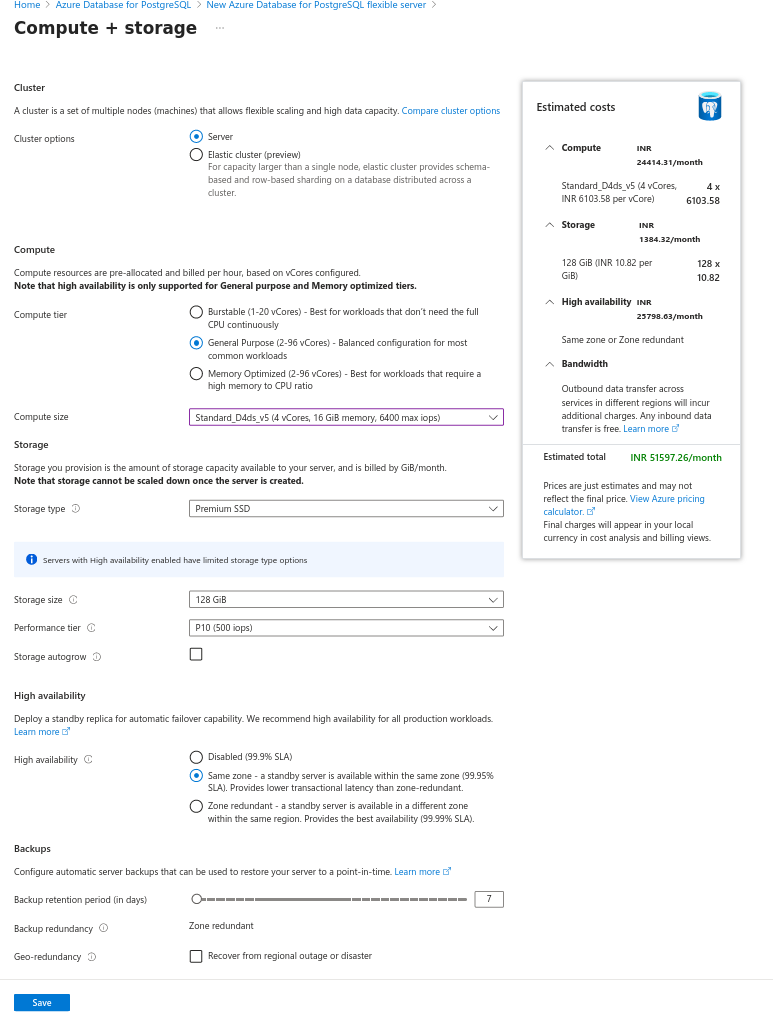

Compute + storage(Configure server)

3. Authentication

Select PostgreSQL authentication only in Authentication method section.
Configure the admin username and password which indeed used in the code later on.
- Eg: Administrator login → solitx-admin,
- Eg: Password → *,
- Eg: Confirm Password → *.
After configuring the Basics, click on Next which is the Networking section to configure the networking details.

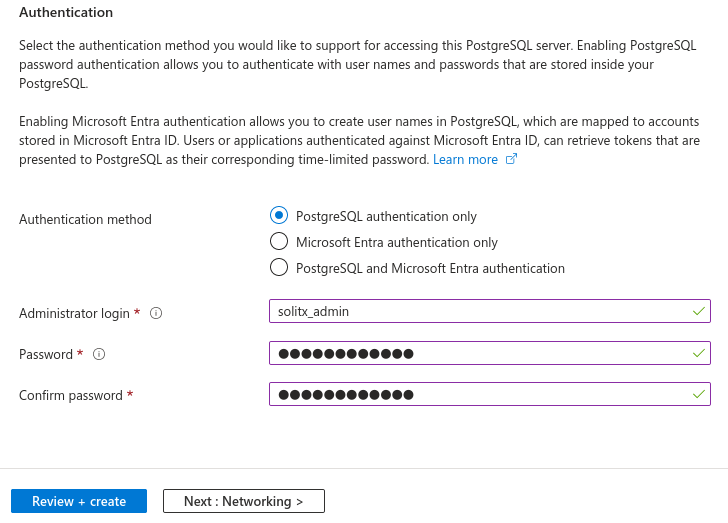

Authentication

Networking

In Connectivity method click on Public access (allowed IP addresses) and Private endpoint.
Under Firewall rules click on + Add current client IP address ( 183.83.228.169 ) and + Add 0.0.0.0 - 255.255.255.255.

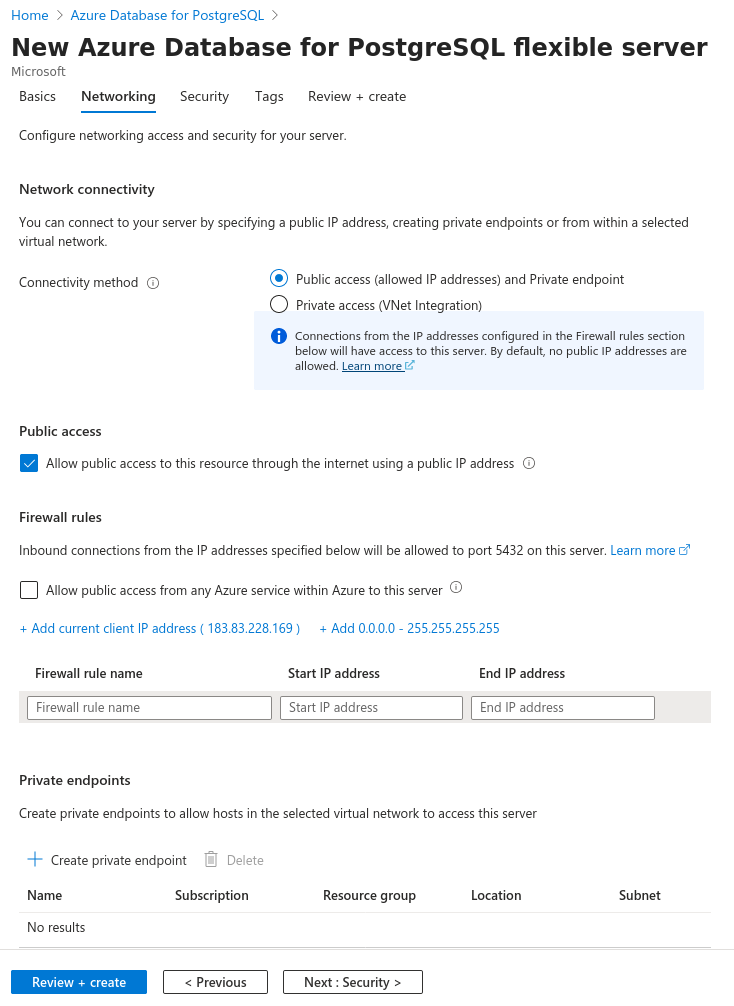

Networking

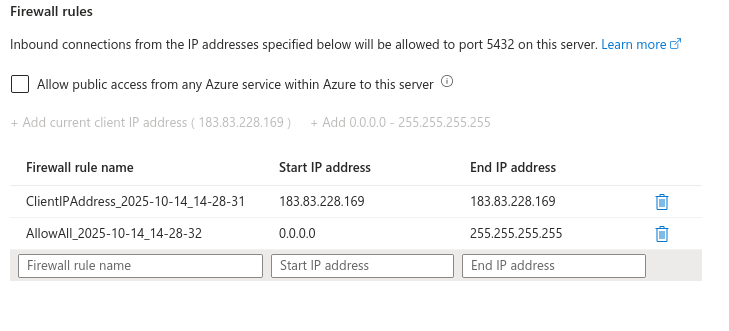

Networking firewall rules

Click on Next which is the Security section to configure the security details.

Security

In the Data encryption section, by default, the Service-managed key is selected. If not, select it.
Click on Next which is the Tags section to configure the tags.

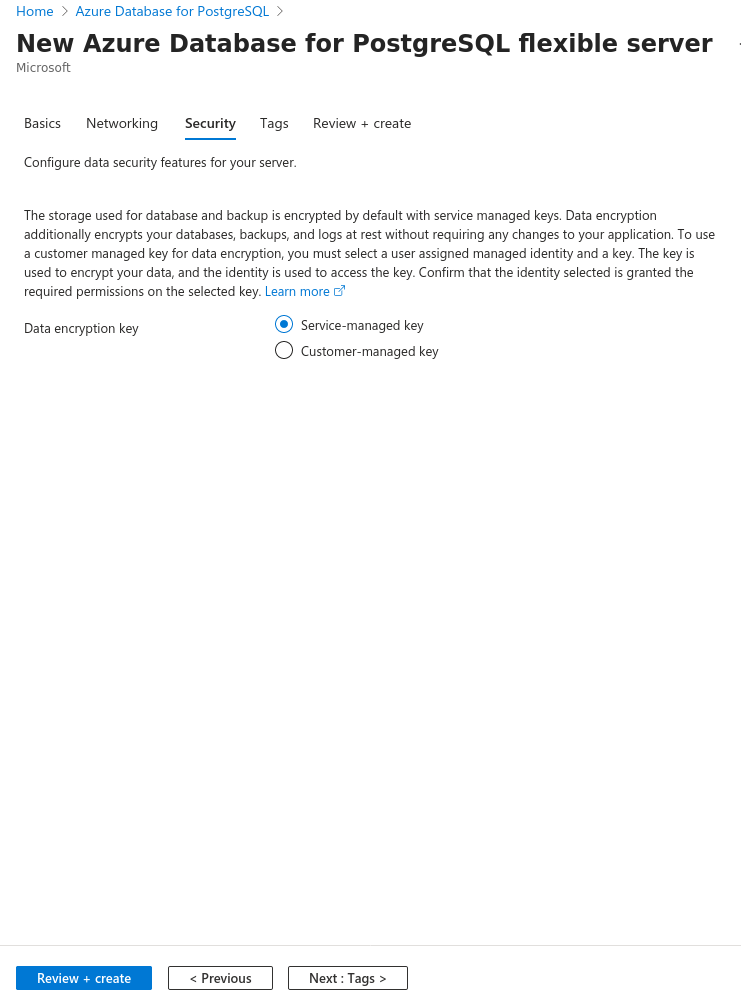

Security configuration

Tags

Leave the tags section as it is and click on Next: Review + create > button.

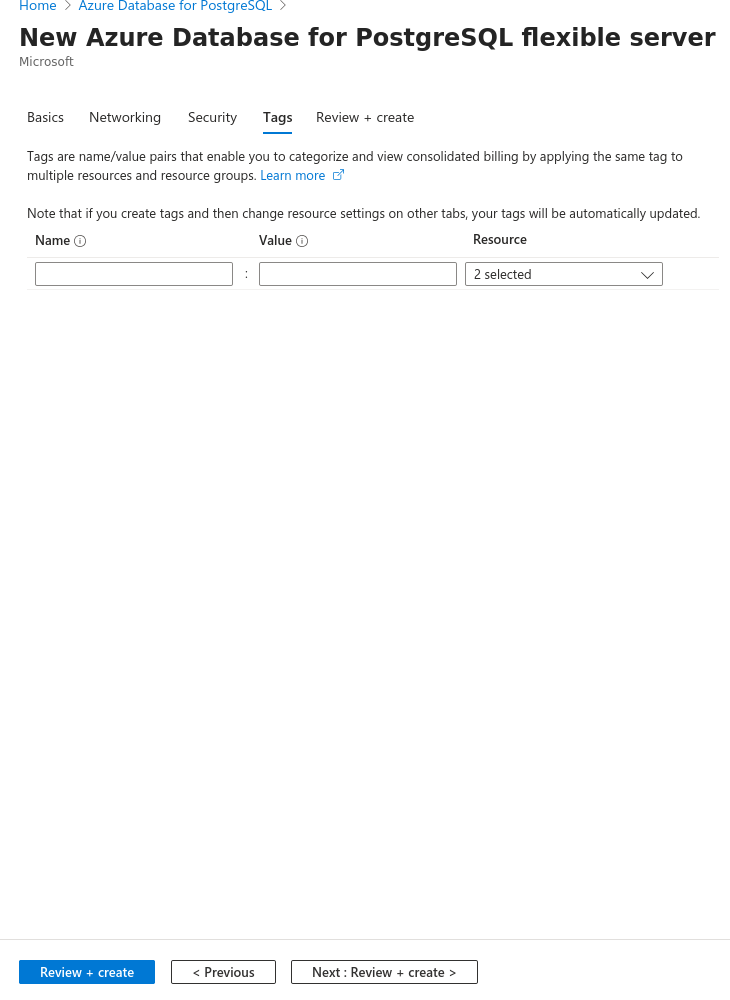

Tags

Review + create

Review and click on Create to create the new azure database for PostgreSQL server.
In this section, all the details which are configured during the creation process along with the estimated costs can be verified before actually creating the database.

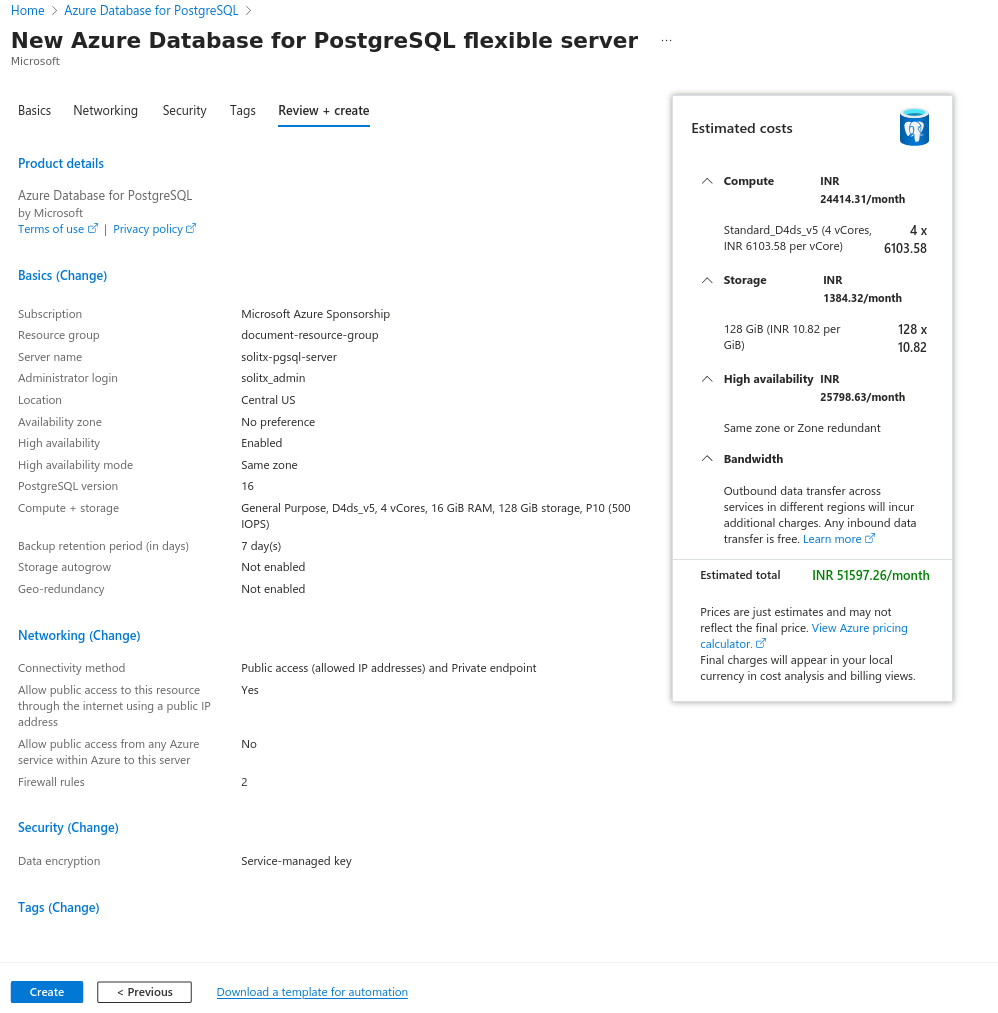

Review + create

Overview

Select Create to provision the server. This operation may take a few minutes.
You will automatically be taken to a screen in which you can monitor the progress of your deployment.
Once the deployment is done select Go to resource which opens the server’s Overview page.

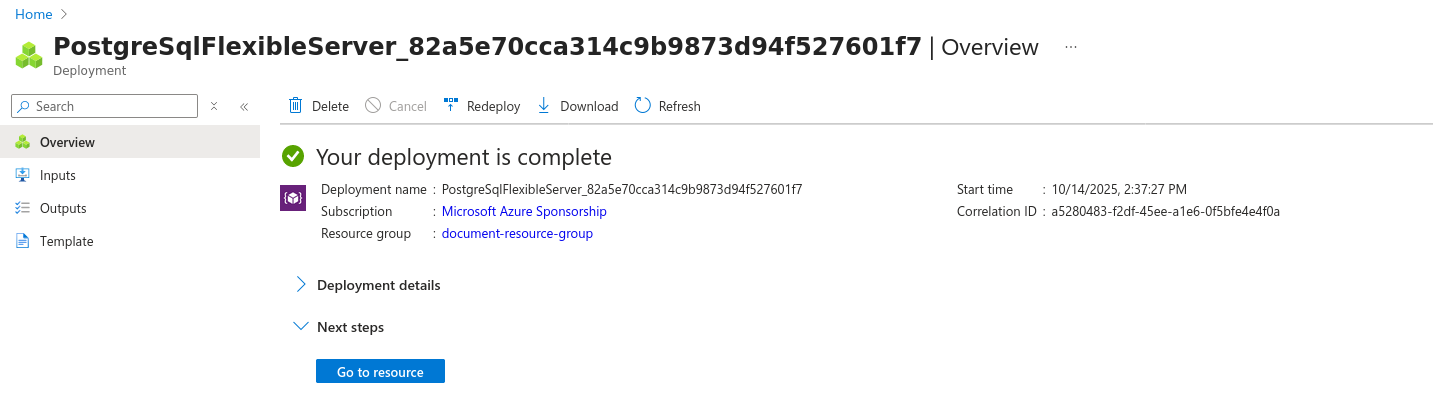

Go to resource

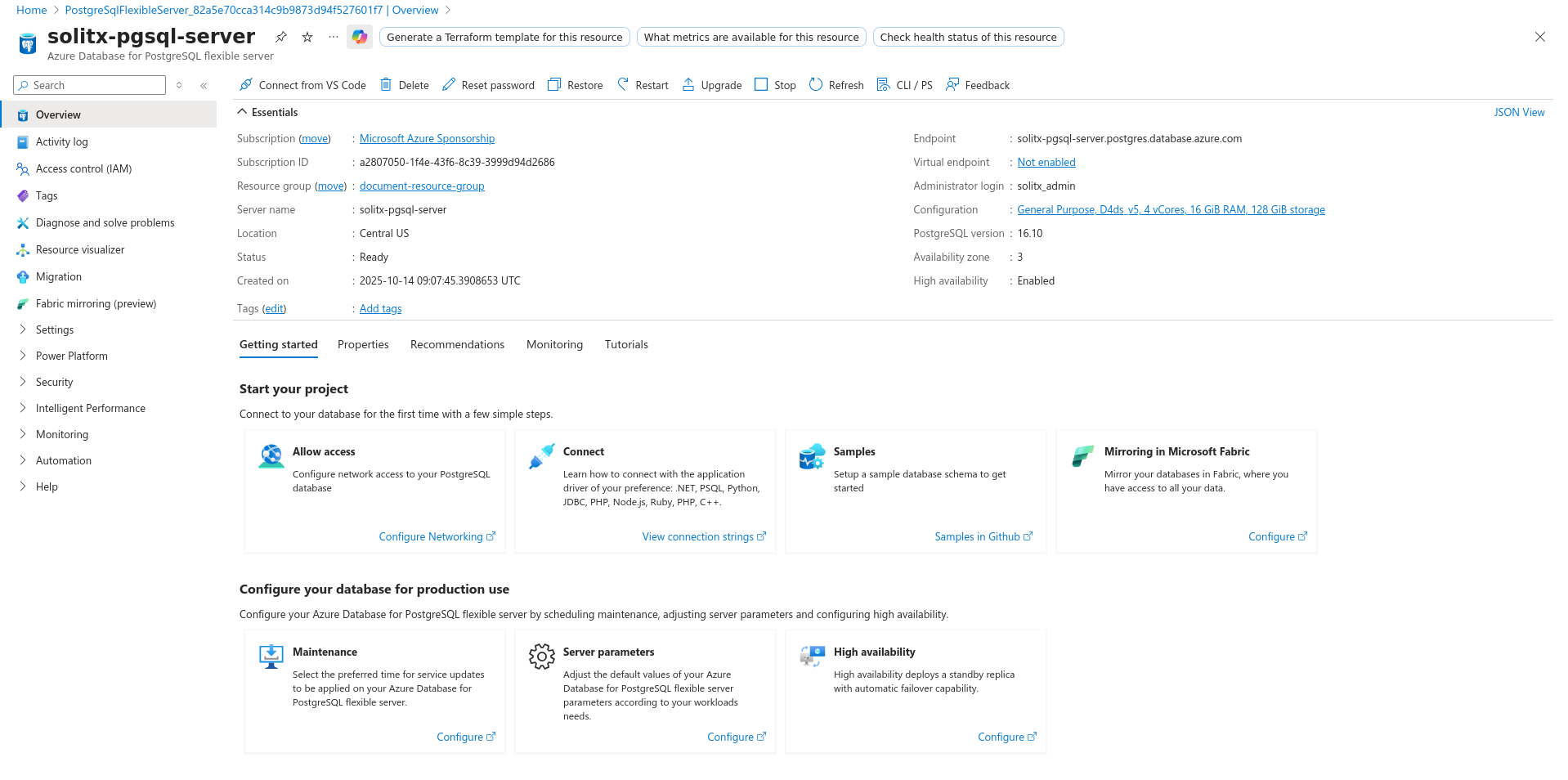

Overview

Create a database

From the overview page, on the left side panel, click on Settings dropdown → Databases.
Click Add - A Create a database modal will be opened from the right.

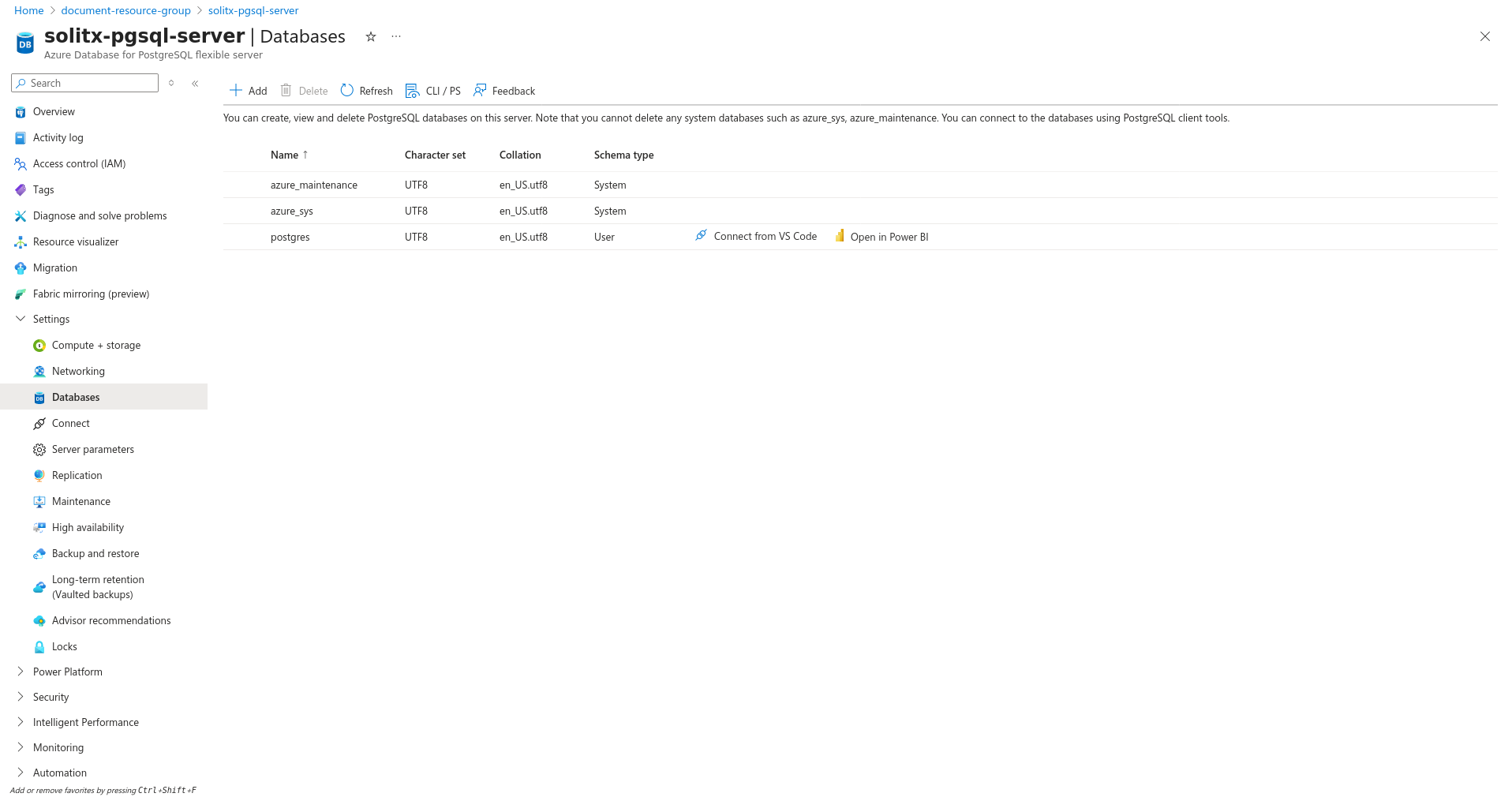

Add a database

Enter Name (Eg: solitx) and click on Save.

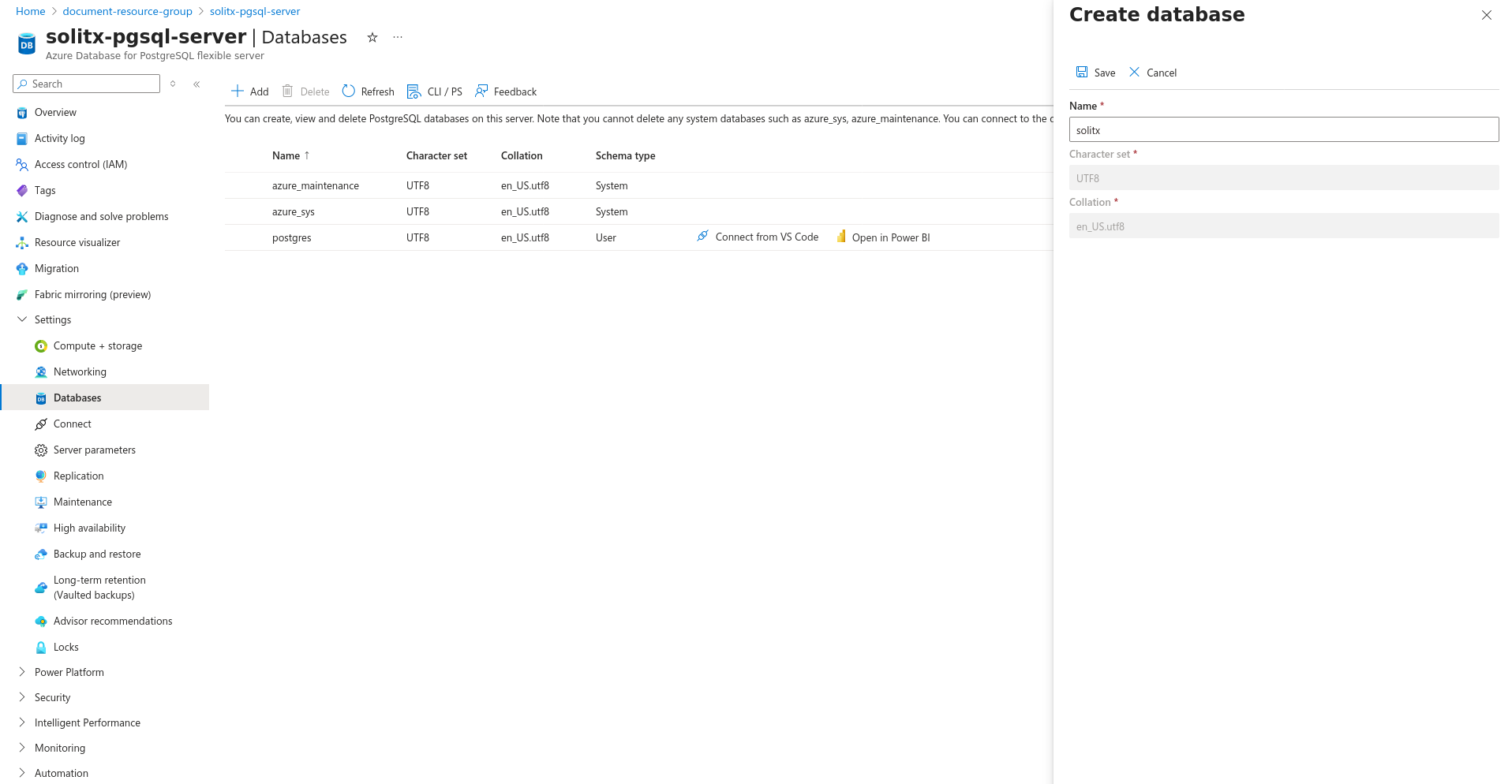

Create a database

Finally to access the database the URL will be the Endpoint/databasename. Here it is solitx-pgsql-server.postgres.database.azure.com/solitx.

The Endpoint can be found in the Overview page.
