HashiCorp Vault: Installation and Setup Guide

Introduction

This document explains the step-by-step process to
- Install Vault in Docker
- Configure Vault
- Create policies
- Generate tokens
- Log in to Vault UI

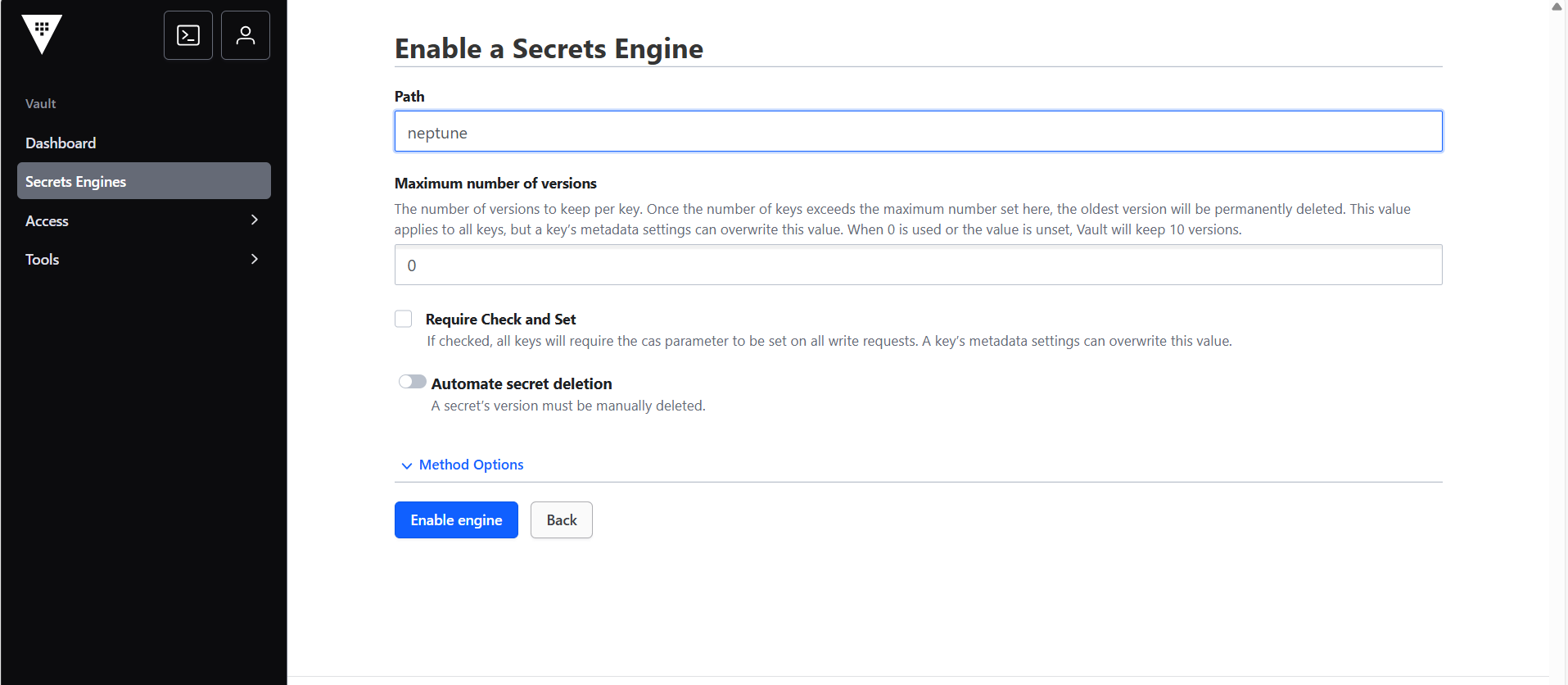

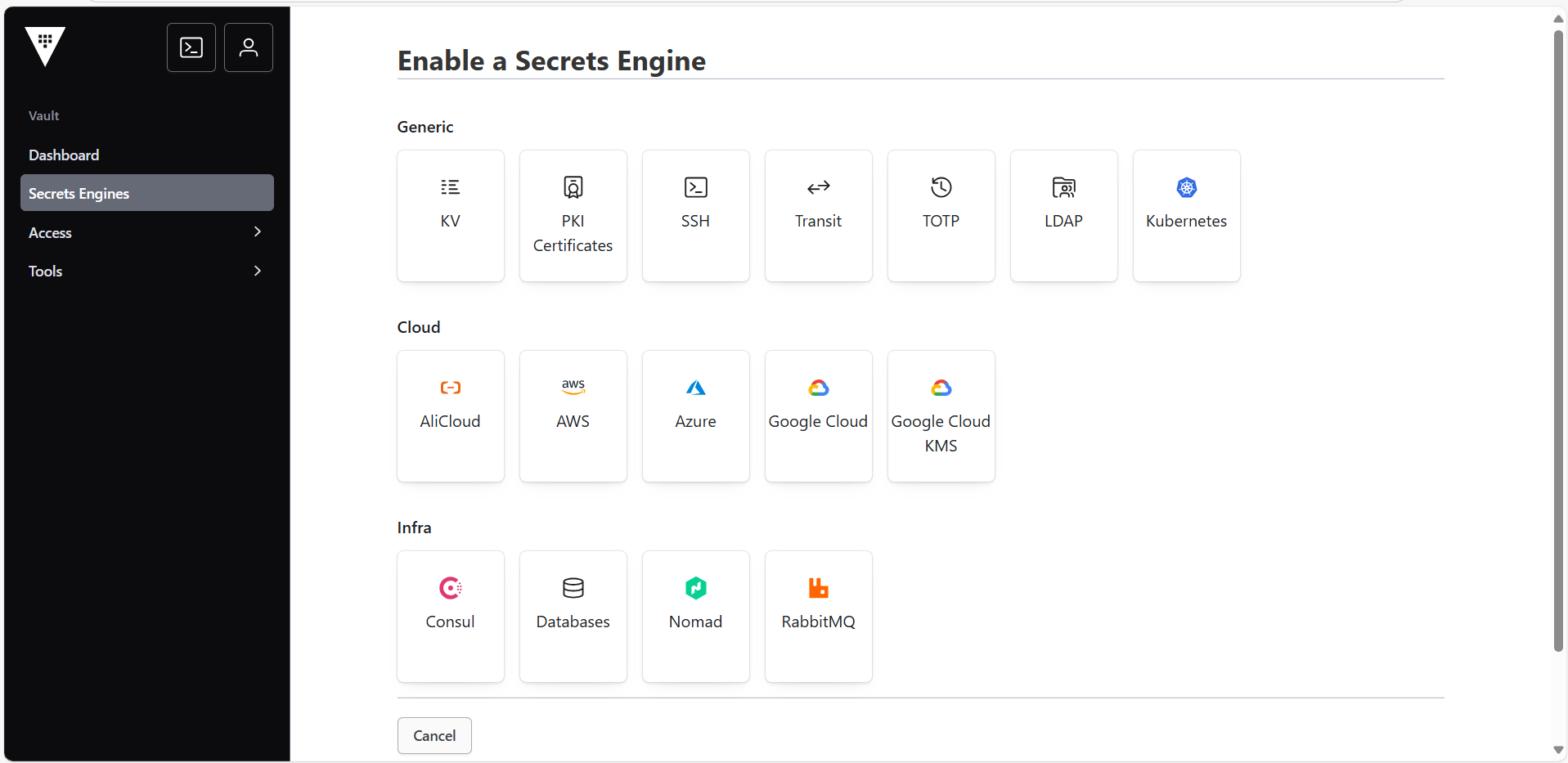

- Enable a KV secrets engine
Vault is used for secret management including API keys, passwords, certificates, and other sensitive data.

Prerequisites

Ubuntu 24.xx VM
Docker installed and running
Terminal access to VM
Browser access to VM’s public IP
Verify Docker
sudo docker --version

Install Docker (If not already installed)

sudo apt update && sudo apt upgrade -y
sudo apt install -y docker.io docker-compose
sudo systemctl enable --now docker

Check Docker
docker --version

Pull Vault Docker image

sudo docker pull hashicorp/vault:1.20.3

Run Vault in Dev mode

sudo docker run -d --name vault --cap-add=IPC_LOCK -p 8200:8200 \
-e 'VAULT_DEV_ROOT_TOKEN_ID=root' hashicorp/vault:1.20.3 server -dev

Check container
sudo docker ps
Expected output

CONTAINER ID IMAGE STATUS PORTS NAMES

067068a77e7d

hashicorp/vault:1.20.3

Up 3m

0.0.0.0:8200→8200/tcp

vault

CONTAINER ID	IMAGE	STATUS	PORTS	NAMES
067068a77e7d	hashicorp/vault:1.20.3	Up 3m	0.0.0.0:8200→8200/tcp	vault

Set environment variables

export VAULT_ADDR='http://<VM-IP>:8200'
export VAULT_TOKEN='root'

Replace <VM-IP> with your actual VM’s IP.

Check status
vault status
Expected output: Initialized: true, Sealed: false, Storage Type: inmem.

Create a custom policy

Create engine-admin.hcl:

sudo nano engine-admin.hcl

The above command creates a engine-admin.hcl file and opens it.

Put the below script into the file.

path "sys/mounts/*" {
  capabilities = ["create", "read", "update", "delete", "list"]
}

path "Neptune/*" {
  capabilities = ["create", "read", "update", "delete", "list"]
}

Replace Neptune with your secrets engine path.
Save with Ctrl+X → Press Y → Enter.

Apply the policy

vault policy write engine-admin engine-admin.hcl

Generate a Token

vault token create -policy="engine-admin" -ttl="24h" -orphan

Example output

Key                  Value
---                  -----
token                hvs.CAESIIQxZovKqtWFQXjkCyOg2AUY9gpLzutmnbhAwNw3UaaMGh4KHGh2cy5yWjhXS013OEhEQWphbGxsUlM3WFViQm4
token_accessor       Kfmef4rU69nXqBjQwSeNyUv3
token_duration       24h
token_renewable      true
token_policies       ["engine-admin"]
